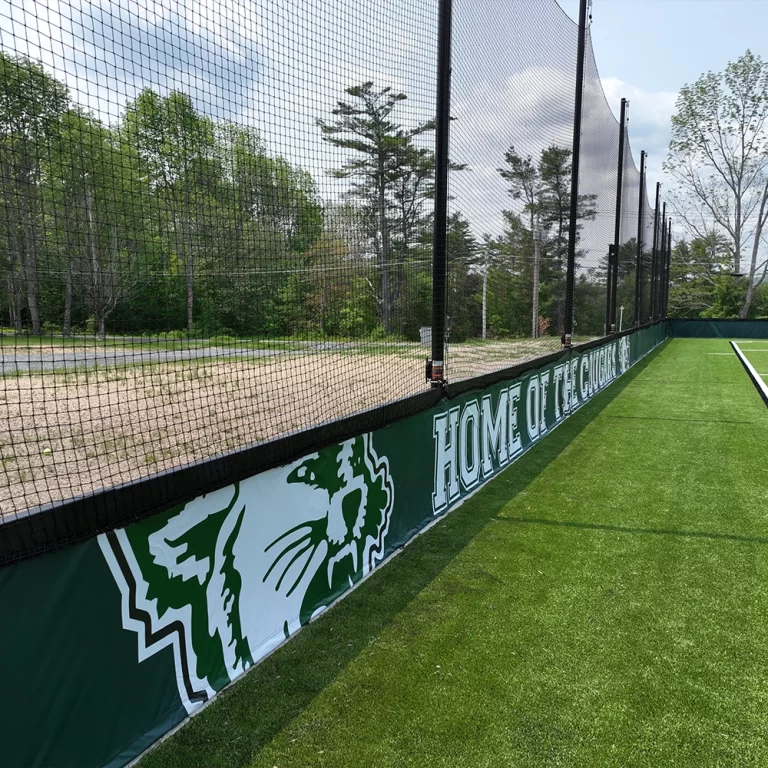

Synthetic Turf Infill Barrier Containment Systems
- Prevents infill flyout and migration through chain link fencing
- Vinyl Coated Polyester Mesh (VCP/VCM) with factory enclosed lead line weighted bottom pocket
- Base fabric is 9 x 12 1000 denier polyester
- Weight is 8 oz. per square yard, plus or minus 1 oz.
- 80% closed mesh, 20% open area
- Standard heights available up to 6’
- Heat welded perimeter hem with 30mm PVC coated weldable webbing reinforcement tape
- #2 brass grommets inserted in top and side perimeter hems every 12” on-center and corners for attachment purposes
- Weather, UV, rot, mildew, and flame resistant
- Various standard colors available
- Custom digitally printed lettering and/or logos available upon request
DESCRIPTION
DOCUMENTATION
CSITB - Barrier synthetic turf infill containment system
| Title | Size | Date added | Download |
|---|---|---|---|
| CSITB Barrier Synthetic Turf Infill Containment System Cut Sheet | 455.53 KB | 20-09-2023 | Download |
| CSITB Barrier Synthetic Turf Infill Containment System 3-Part Spec | 27.53 KB | 20-09-2023 | Download |
| CSITB-CAD | 74.94 KB | 20-09-2023 | Download |
PHOTO GALLERY
