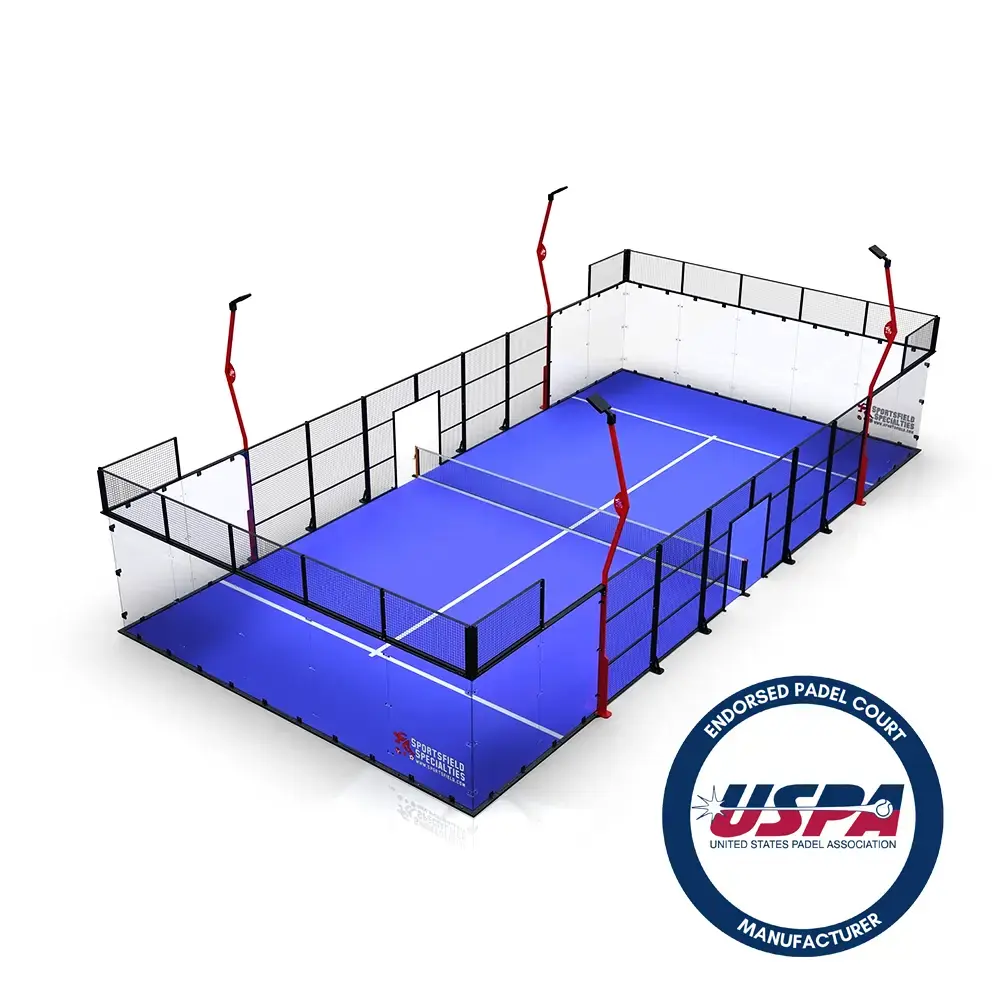

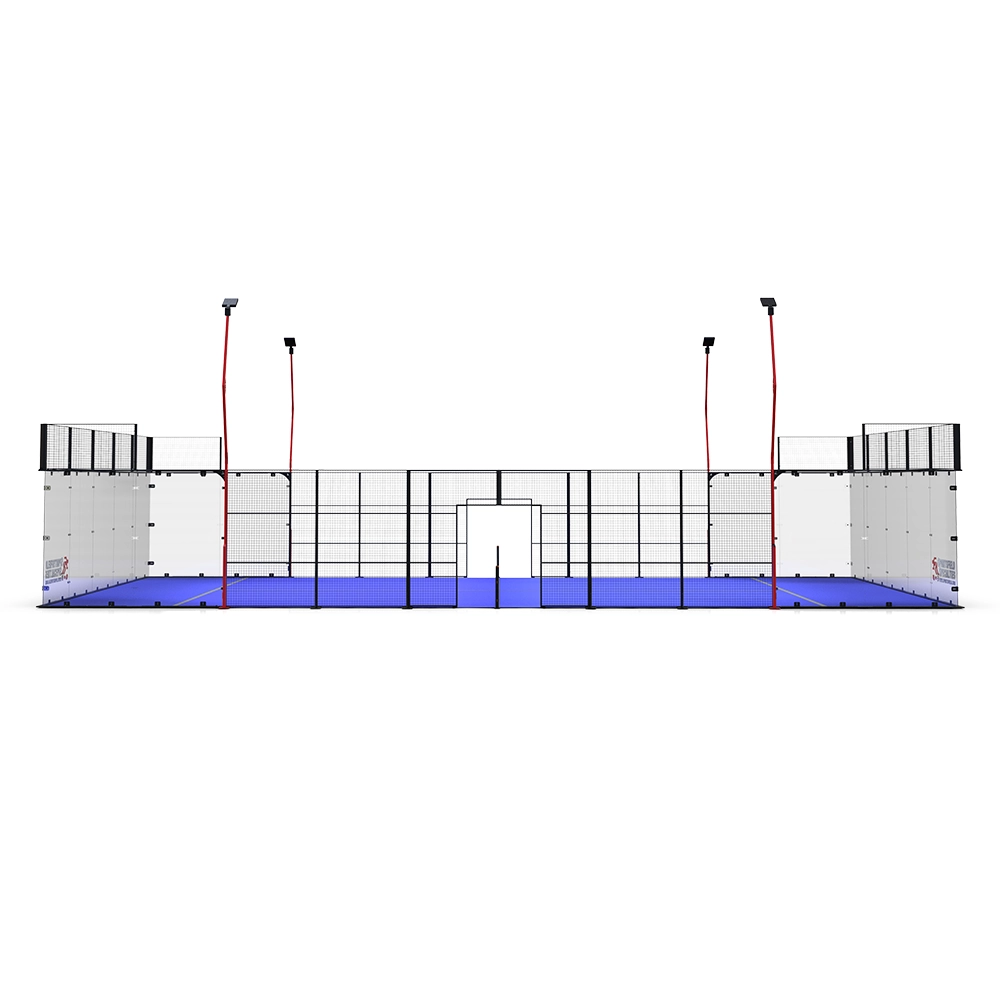

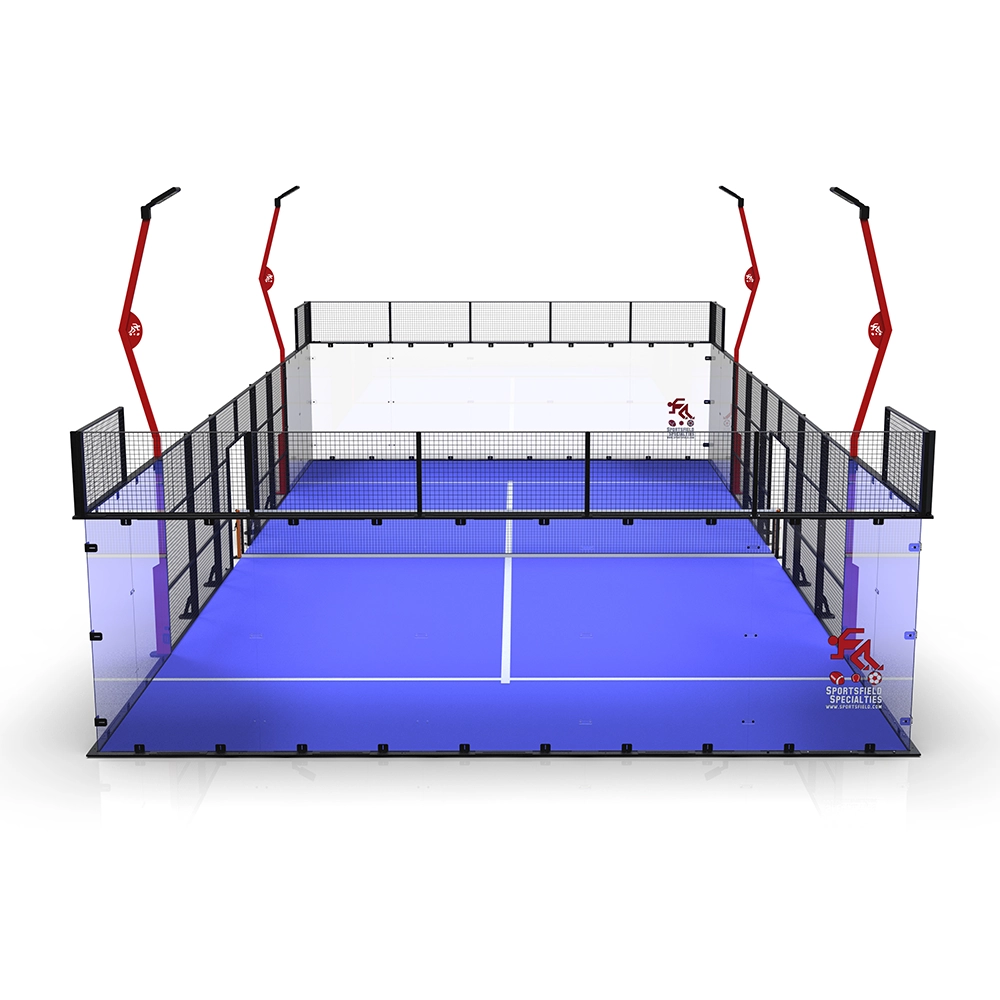

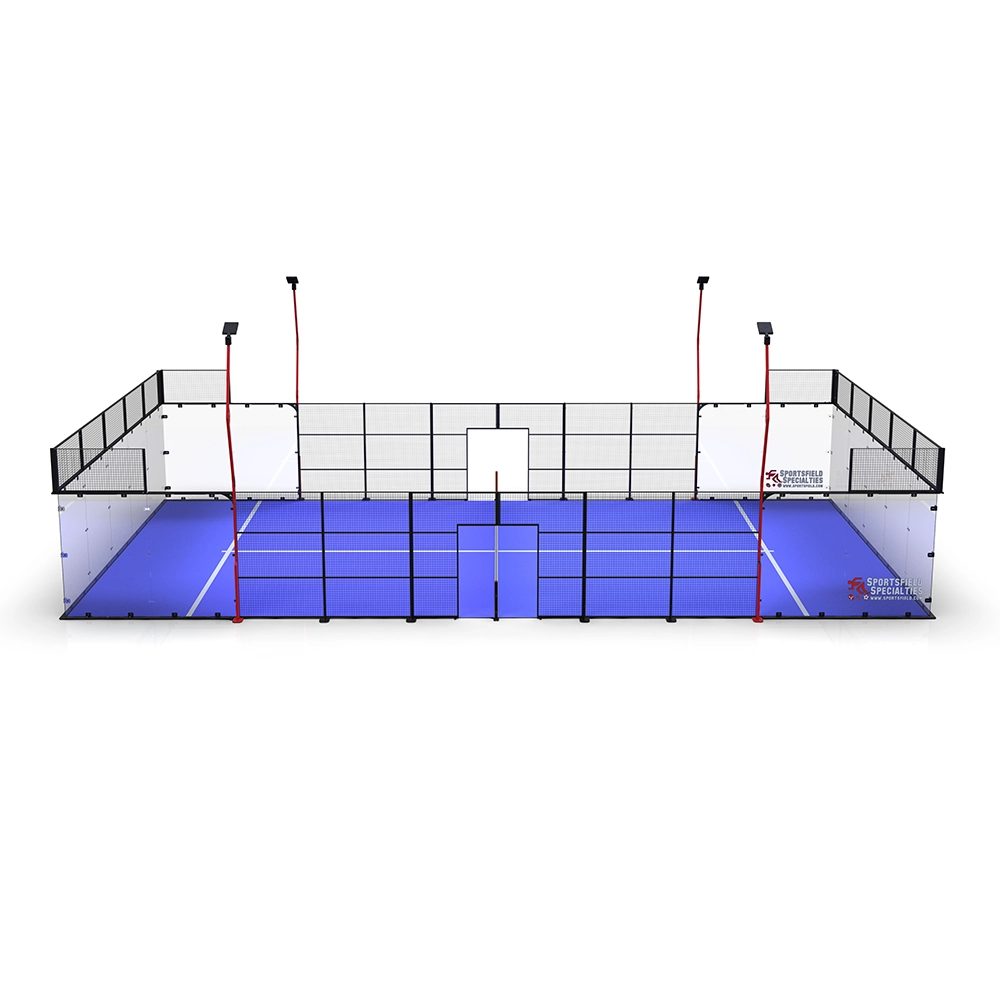

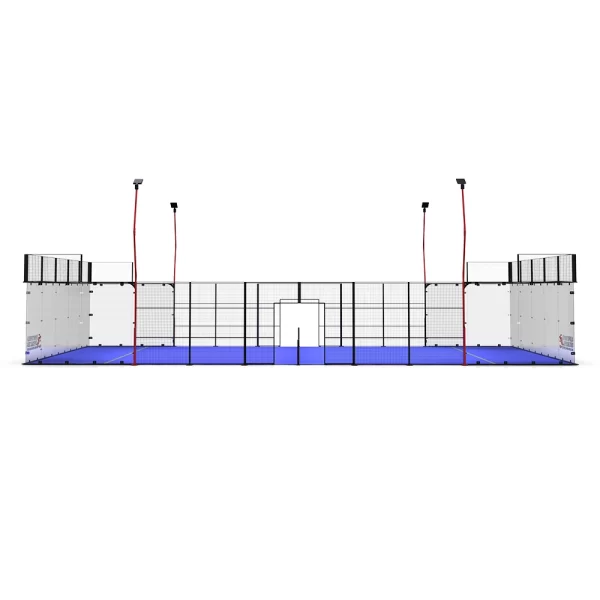

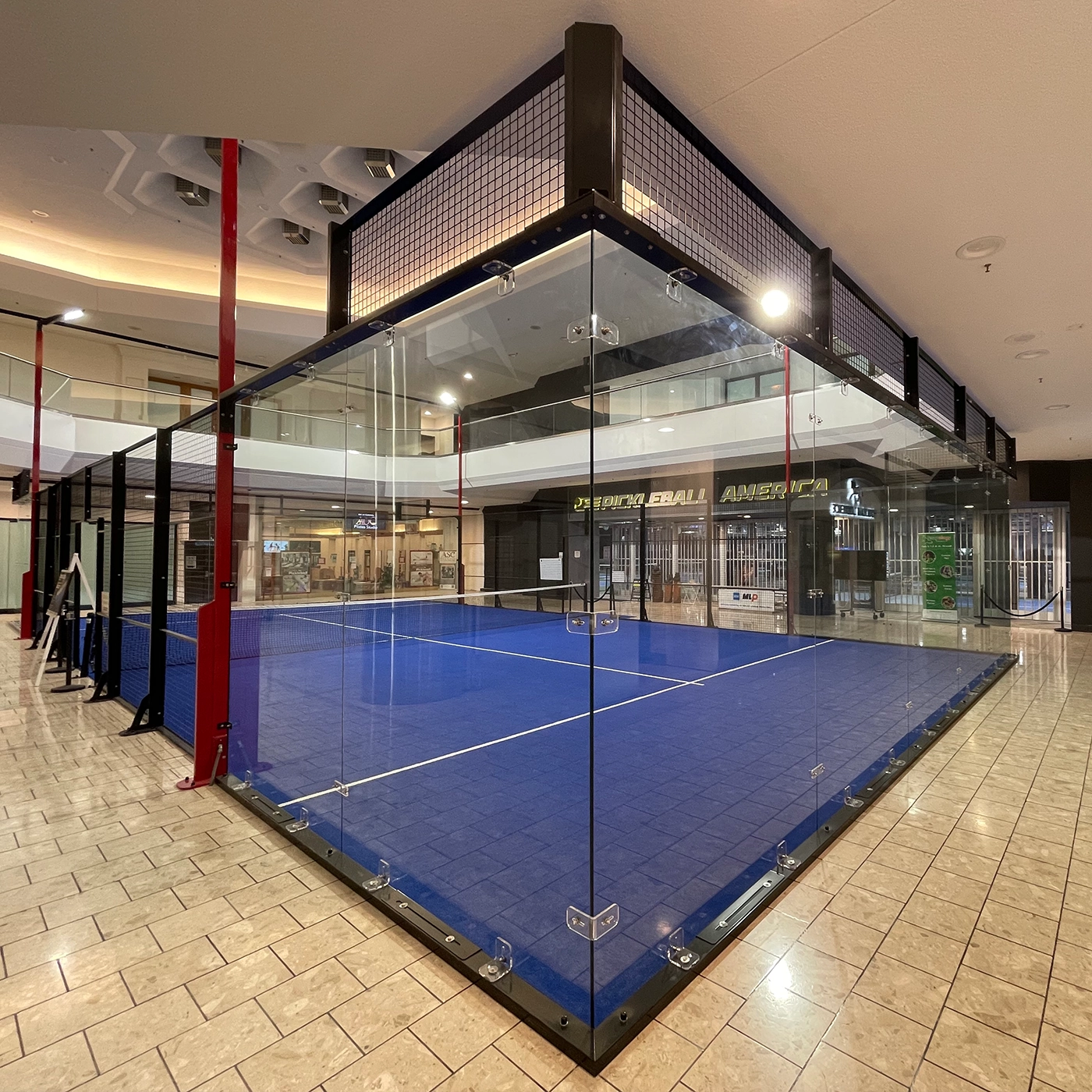

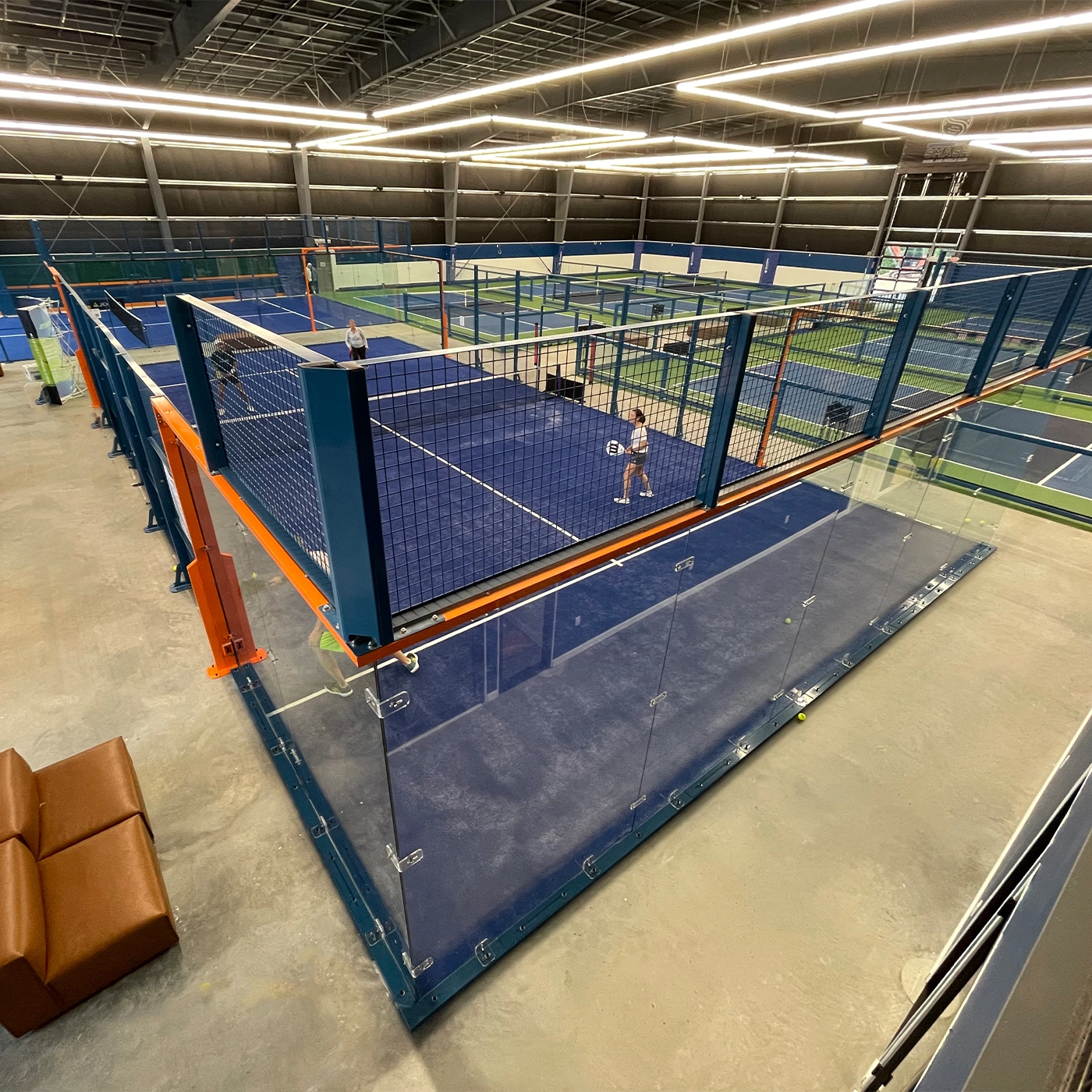

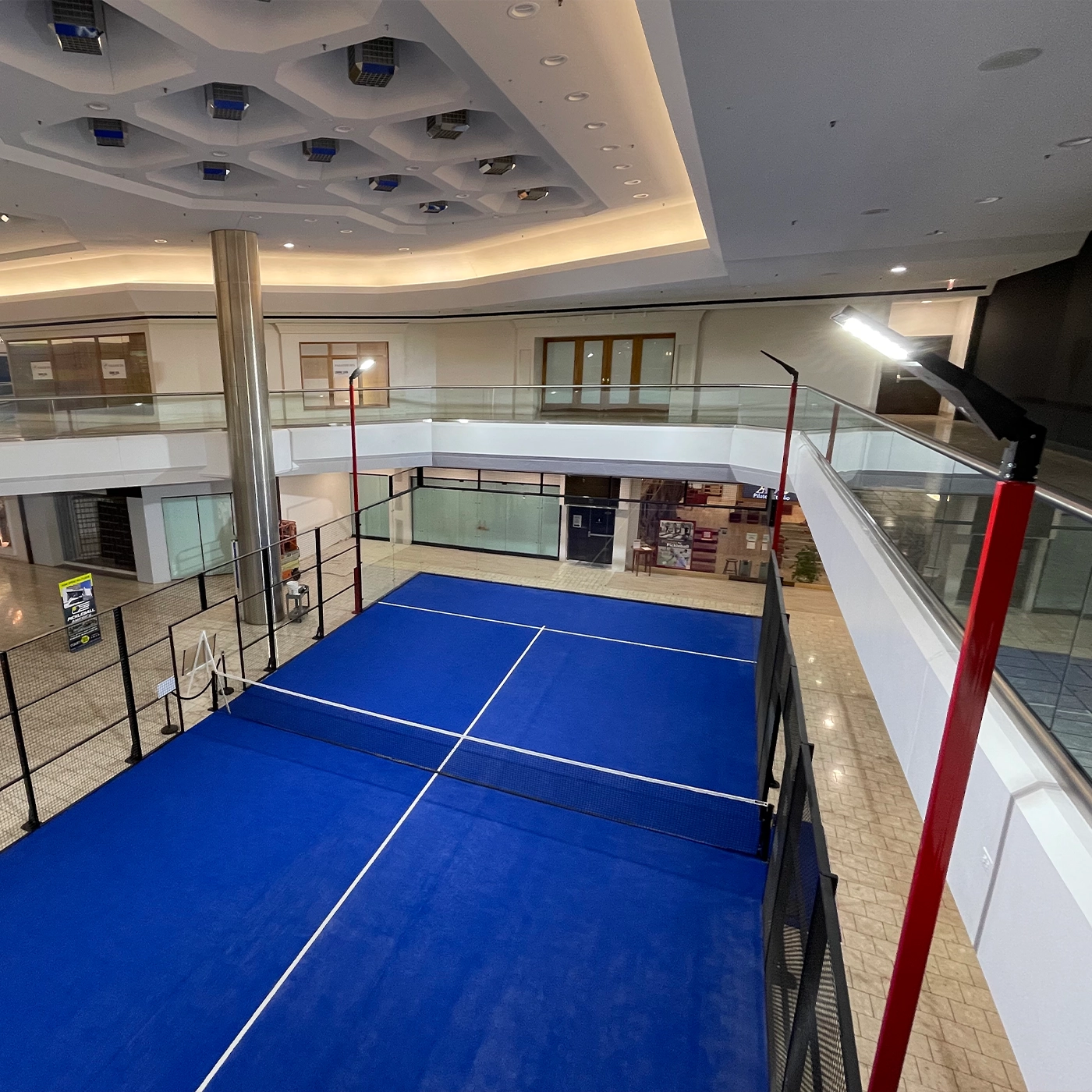

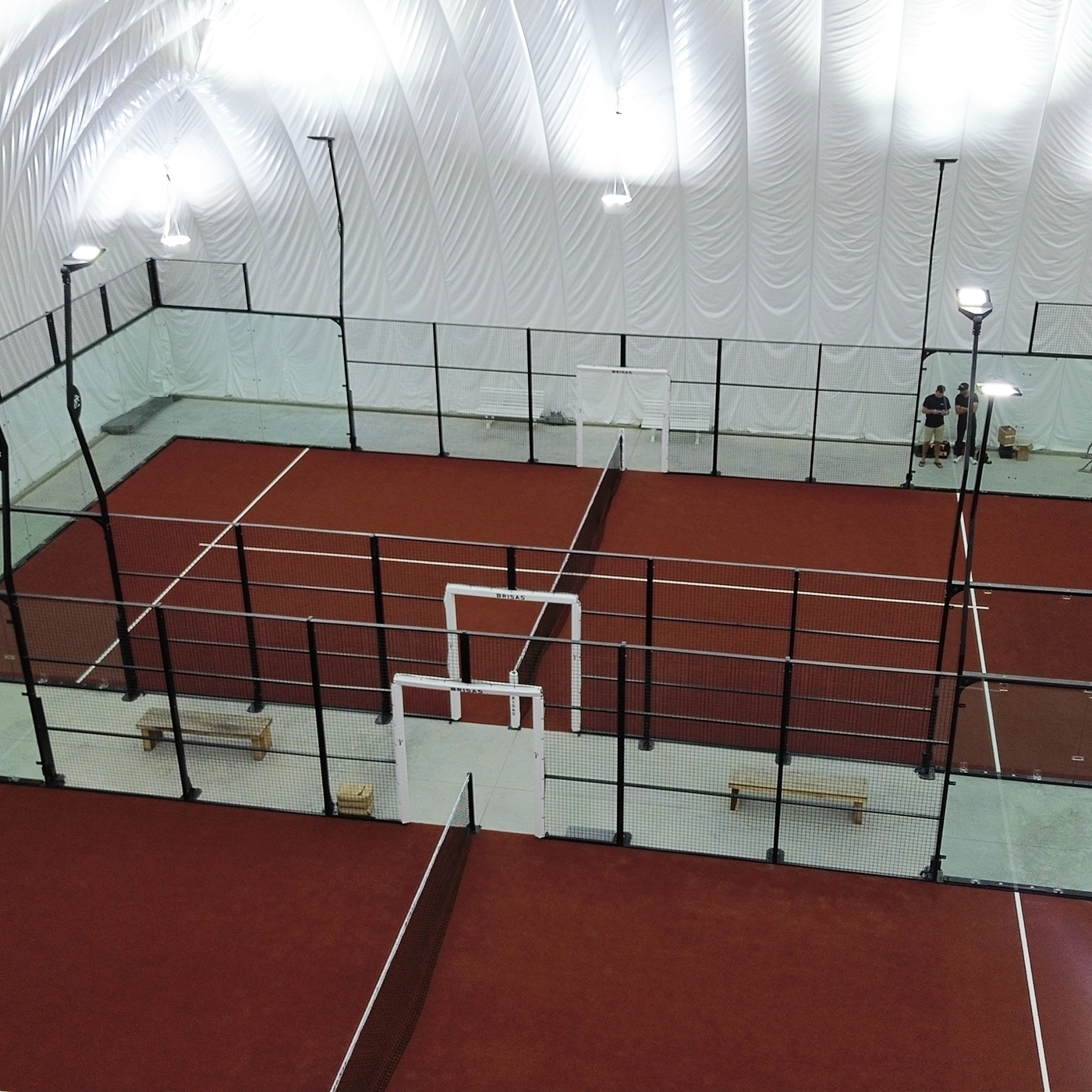

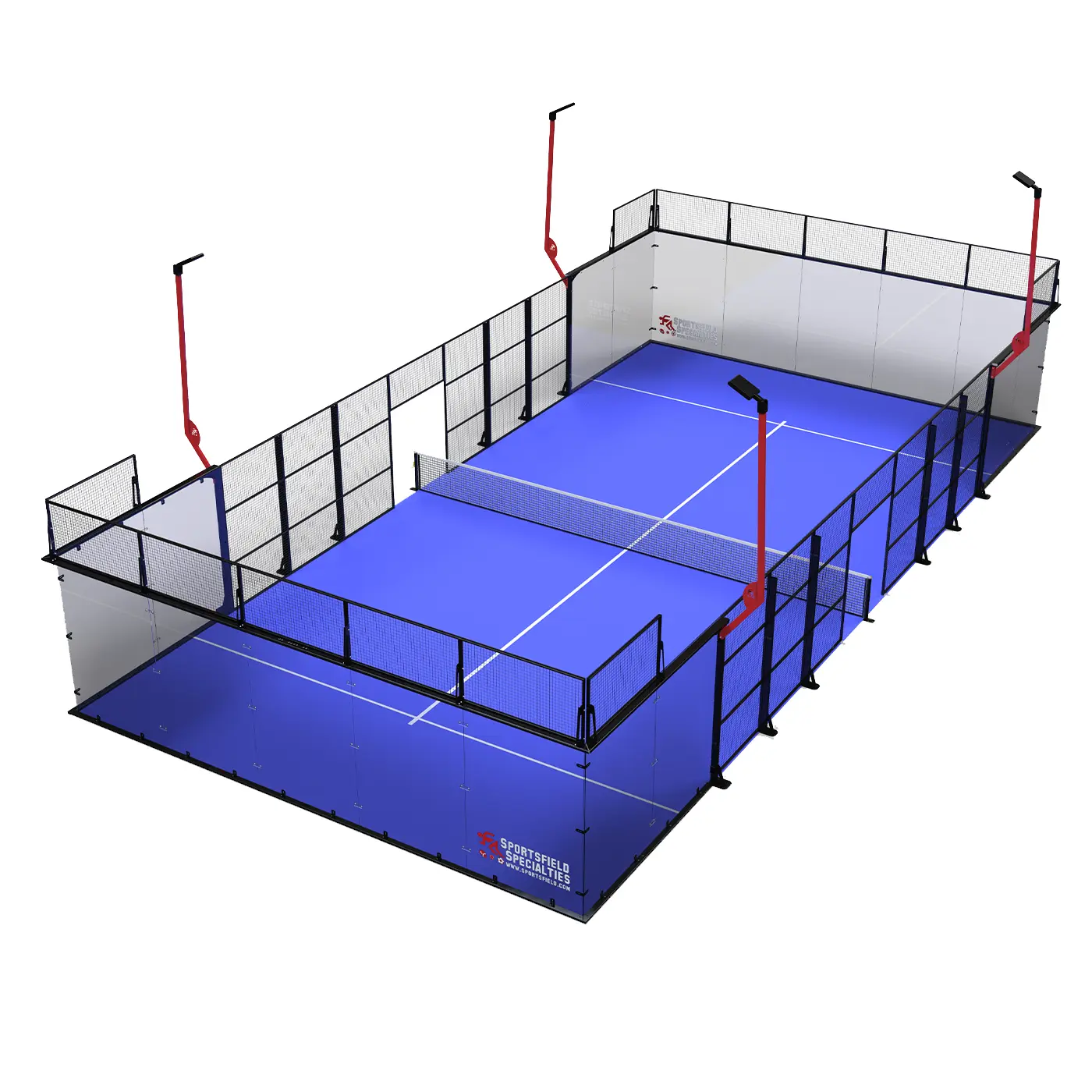

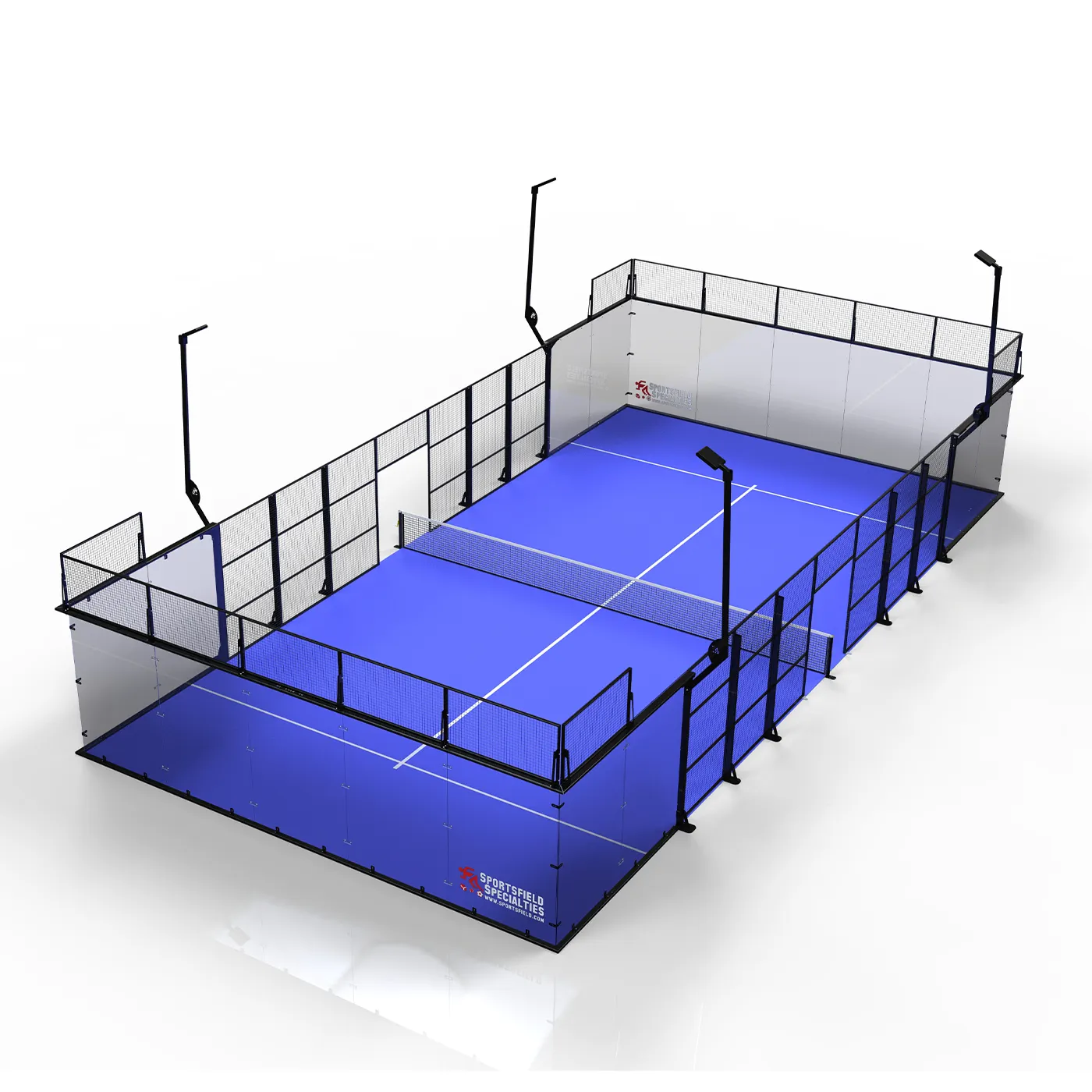

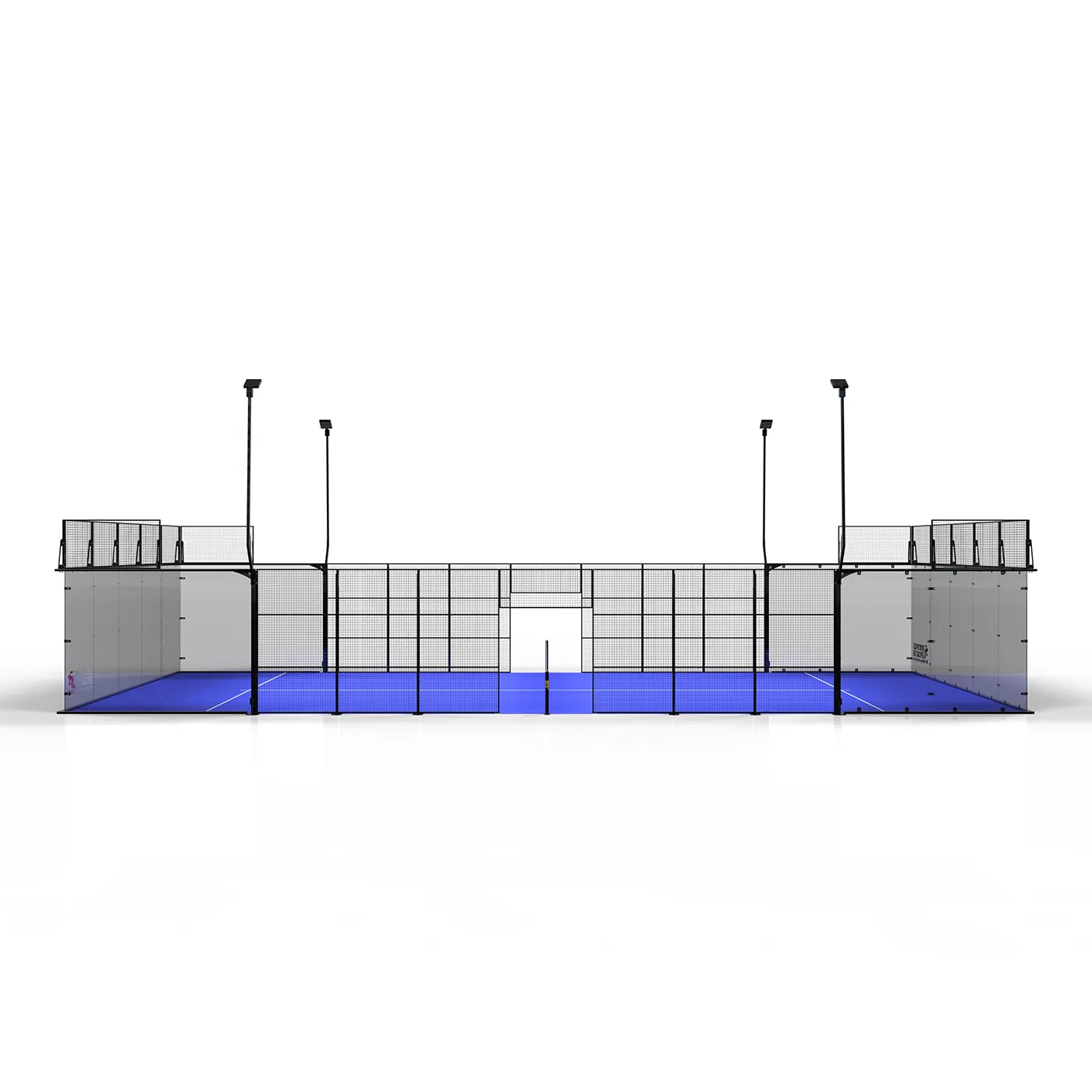

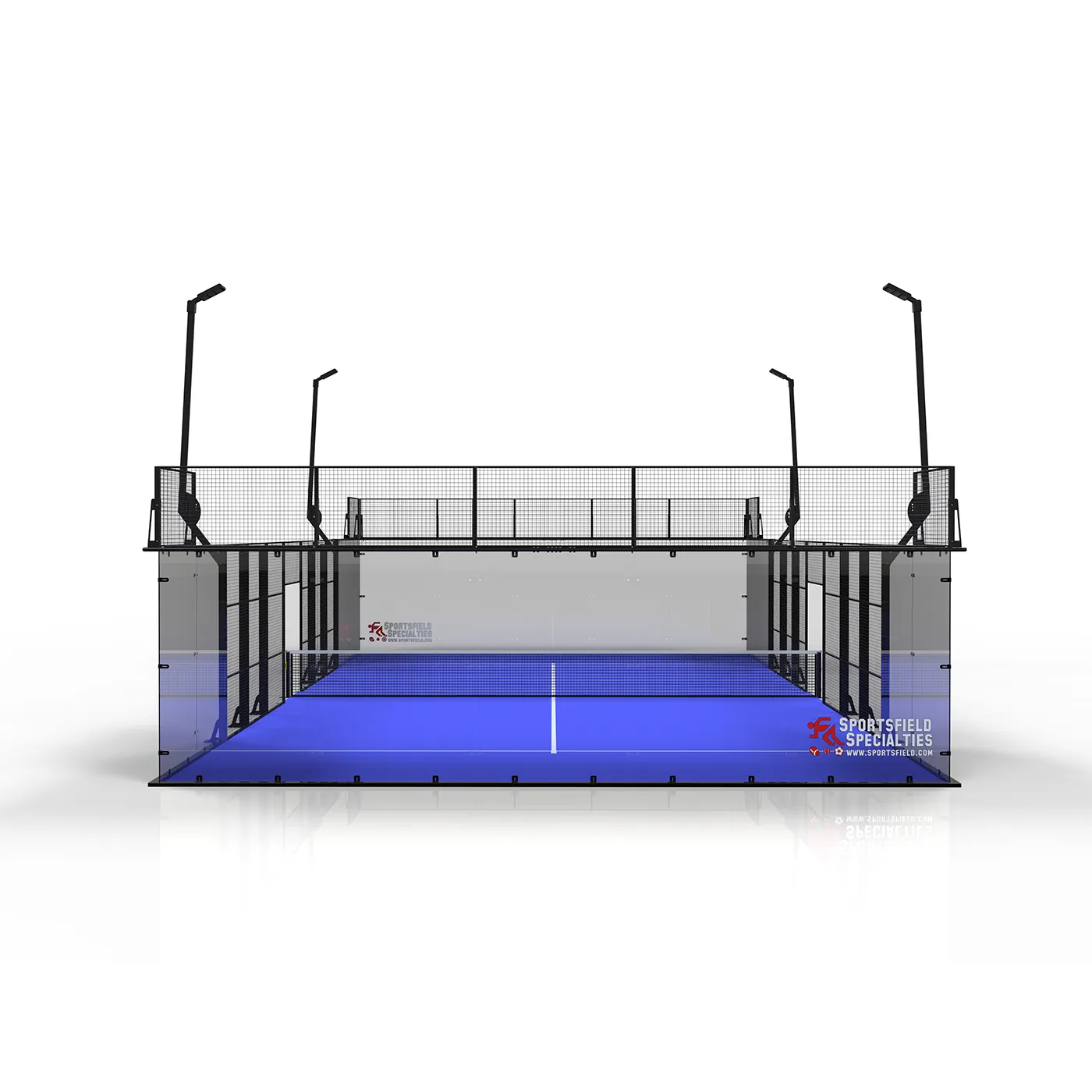

PaDelhi™ Indoor Full Panoramic Padel Court Systems

Base plates and reinforcement gussets fabricated of ½” thick welded steel
3 meter posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded reinforcement gusset
Top and bottom cross members fabricated of 2” x 4” 3/16” wall aluminum rectangular tube
Top side members fabricated of 2″ x 4″ 1/8″ wall steel rectangular tube
Top and bottom glass retainer brackets fabricated of 11 gauge bent sheet steel
Top, bottom, corner, and middle glass support brackets fabricated of 3/8” (10mm) clear polycarbonate
7 meter lighting posts fabricated of 4” x 2” 11 gauge steel rectangular tube with welded 4” x 2” x 54” 11 gauge steel rectangular tube reinforcement
Four (4) 400-watt LED lighting fixtures with attachment coupler
2” x 2” square mesh, 1.844” x 1.844” opening, 0.156” thick (8-1/4 gauge) wire diameter, carbon steel, bent and welded 11 gauge steel frame
Mesh panel posts fabricated of 4” x 2” 11” gauge steel rectangular tube with welded base
Eighteen (18) 1/2” (12mm) clear tempered glass, 2 meters wide x 3 meters high, polished edge
Padel Court posts and net, 2-7/8” round internal wind posts, set of 2
Polypropylene synthetic turf, pile height: 9/16” +/- 1/8”, Florida blue or spring green with inlaid white lines, various additional colors available upon request
Standard black and red powder coated finish, various additional colors available upon request

DESCRIPTION

PDCRTSYSFLLPNRMC - PaDelhi™ Indoor Full Panoramic Padel Court Systems

Title	Size	Date added	Download
PaDelhi™ Padel Court Systems Brochure	4.12 MB	01-07-2024	Download
PDCRTSYSFLLPNRMC PaDelhi™ Indoor Full Panoramic Padel Court System Cut Sheet	1.86 MB	01-07-2024	Download
PDST PaDelhi™ Padel Court Synthetic Turf Cut Sheet	552.05 KB	25-06-2024	Download
PDLGHT PaDelhi™ Padel Court Lighting System Cut Sheet	551.34 KB	25-06-2024	Download
PDCRTSYSFLLPNRMC PaDelhi™ Indoor Full Panoramic Padel Court System and Accessories 3-Part Spec	30.20 KB	01-07-2024	Download
