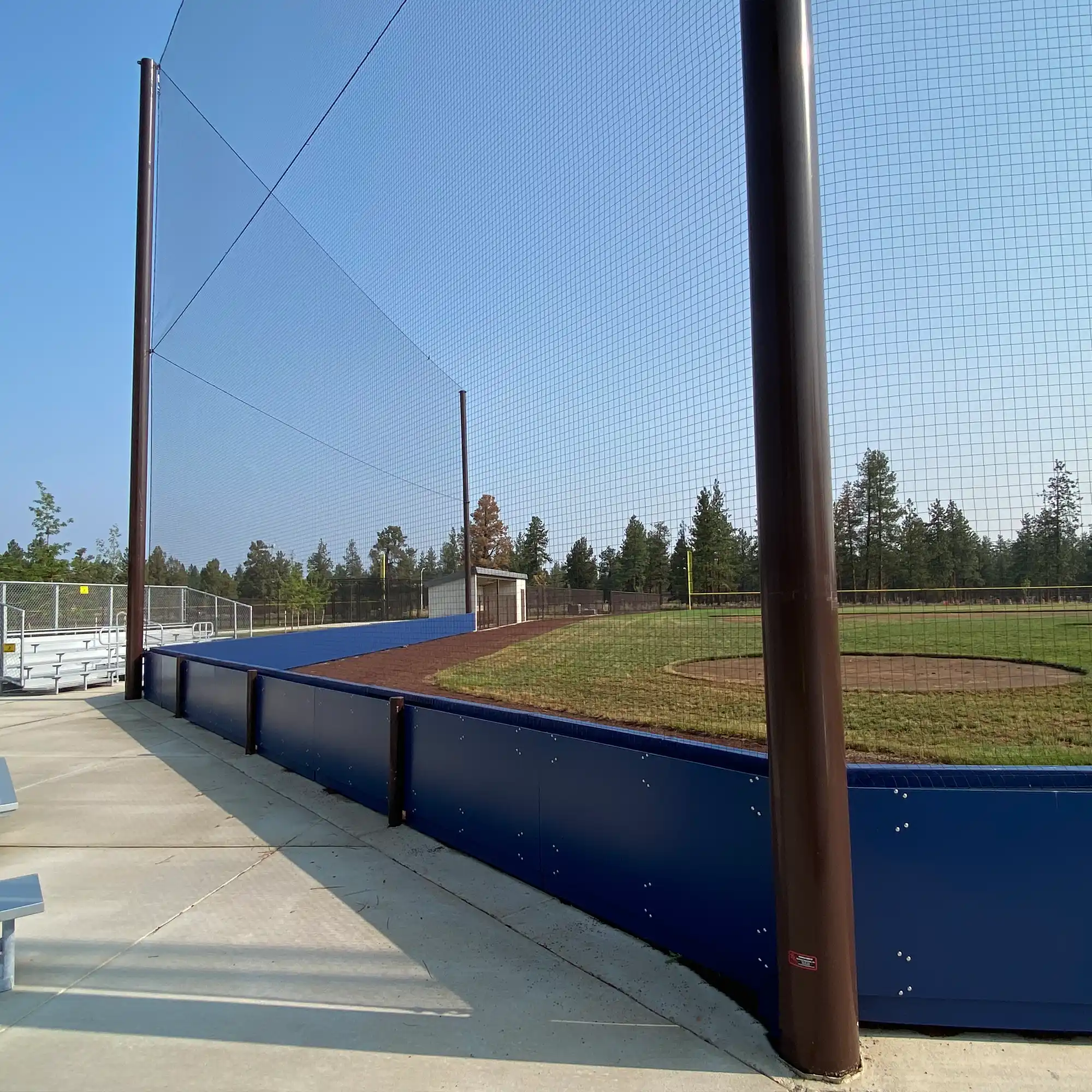

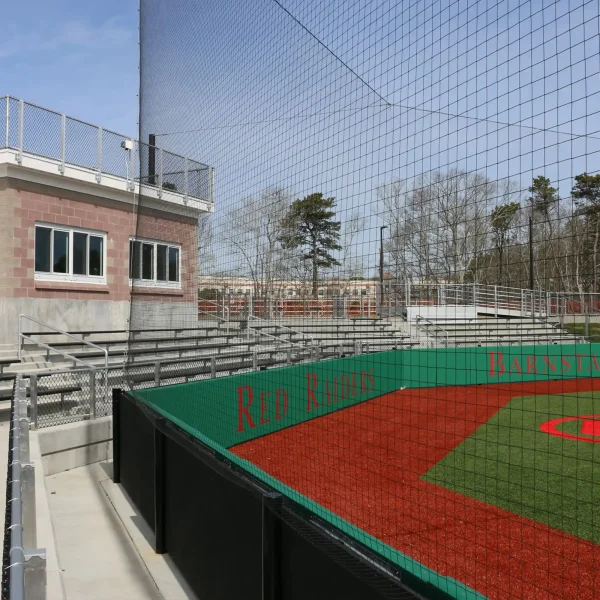

Backstop Netting Systems with Integrated Wall Padding
- Seamlessly combines protective netting components and a wall pad backstop into a single system
- Allows design professionals the ability to create a clean look while streamlining installation
- Pre-manufactured construction saves 15-40% on cost over conventional construction methods
- Unsightly hardware is concealed for a clean and professional look on and off the field
- Available in a variety of colors with custom digitally printed graphics and lettering
- End-users love the ease of swapping out custom logo pads at multi-team venues
- Black stained and sealed 1/2″ MDO composite backer board panels
DESCRIPTION
Our tension netting systems with integrated wall pad backstops are available in tie-back and pole-to-pole tension netting styles. Either style is available with #36 nylon or Ultra Cross® netting. The integrated wall pad backstop is a BaseZone® wall pad wrapped in 18 oz. outdoor vinyl mounted with z-clip mounting brackets. The integrated wall pads come standard in 30”, 36”, 42”, and 48” heights. Optional custom digitally printed lettering and graphics available.
Mounting options will depend on foundation requirements based on local codes and soil conditions. Contact your regional sales manager for assistance.
DOCUMENTATION
TNPPUCWPB - Custom pole-to-pole tension backstop netting system with integrated wall pad backstop and Ultra Cross® net
| Title | Size | Date added | Download |
|---|---|---|---|
| TNPPUCWPB - Pole-to-Pole Tension Netting System with Integrated Wall Pad Backstop, Ultra Cross Netting 3-Part Specification | 61.00 KB | 21-09-2023 | Download |
| Pole to Pole Tension Netting with Integrated Wall Pad Backstop Install Instructions | 2.09 MB | 17-06-2024 | Download |
| Pole to Pole Tension Netting System Detail G Cut Sheet | 1.54 MB | 03-12-2024 | Download |
| Pole to Pole Tension Netting System Detail F Cut Sheet | 1.03 MB | 03-12-2024 | Download |
| Pole to Pole Tension Netting System Detail E Cut Sheet | 1.73 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail D Cut Sheet | 1.86 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail C Cut Sheet | 1.76 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail B Cut Sheet | 2.08 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail A2 Cut Sheet | 1.36 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail A1 Cut Sheet | 1.45 MB | 21-09-2023 | Download |
TNPP36WPB - Custom pole-to-pole tension backstop netting system with integrated wall pad backstop and #36 nylon net
| Title | Size | Date added | Download |
|---|---|---|---|
| TNPP36WPB - Pole-to-Pole Tension Netting System with Integrated Wall Pad Backstop, #36 Nylon Netting 3-Part Specification | 60.50 KB | 21-09-2023 | Download |
| TNPP - Pole to Pole Backstop Install Instructions | 950.65 KB | 21-09-2023 | Download |
| Pole to Pole Tension Netting with Integrated Wall Pad Backstop Install Instructions | 2.09 MB | 17-06-2024 | Download |
| Pole to Pole Tension Netting System Detail G Cut Sheet | 1.54 MB | 03-12-2024 | Download |
| Pole to Pole Tension Netting System Detail F Cut Sheet | 1.03 MB | 03-12-2024 | Download |
| Pole to Pole Tension Netting System Detail E Cut Sheet | 1.73 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail D Cut Sheet | 1.86 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail C Cut Sheet | 1.94 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail B Cut Sheet | 2.06 MB | 21-09-2023 | Download |
| Pole to Pole Tension Netting System Detail A Cut Sheet | 1.45 MB | 21-09-2023 | Download |
TNTBUCWPB - Custom tie-back tension backstop netting system with integrated wall pad backstop and Ultra Cross® net
| Title | Size | Date added | Download |
|---|---|---|---|
| Tie-Back Tension Netting System Detail E Cut Sheet | 1.50 MB | 03-12-2024 | Download |
| Tie-Back Tension Netting System Detail D Cut Sheet | 1.28 MB | 03-12-2024 | Download |
| Tie-Back Tension Backstop Netting System with Integrated Wall Pad Cut Sheet | 776.91 KB | 21-09-2023 | Download |
| Pole to Pole Tension Netting with Integrated Wall Pad Backstop Install Instructions | 2.63 MB | 03-12-2024 | Download |
TNTB36WPB - Custom tie-back tension backstop netting system with integrated wall pad backstop and #36 nylon net
| Title | Size | Date added | Download |
|---|---|---|---|
| Tie-Back Tension Netting System Detail E Cut Sheet | 1.50 MB | 03-12-2024 | Download |
| Tie-Back Tension Netting System Detail D Cut Sheet | 1.28 MB | 03-12-2024 | Download |
| Tie-Back Tension Backstop Netting System with Integrated Wall Pad Cut Sheet | 776.91 KB | 21-09-2023 | Download |
| Pole to Pole Tension Netting with Integrated Wall Pad Backstop Install Instructions | 2.63 MB | 03-12-2024 | Download |
TNWPBWS - Optional rear windscreen enclosure and hardware for integrated wall pad backstop
PESTNPP - Stamped drawings and calculations by a licensed professional engineer for pole-to-pole netting systems
