Football Goal Access Frame Kits
- Available for all Sportsfield football goal post models
- Required for rotating and/or hinged football goal posts
- Synthetic turf models include exclusive infill retainage gasket
- and perimeter turf attachment ledge
- Synthetic turf models require turf to be applied by others
- Natural grass models include preinstalled synthetic turf with thatch layer
- Aluminum construction with integral drainage stub
- Includes two half covers with goal post cutout
DESCRIPTION
Football goal access frame kits manufactured by Sportsfield Specialties are aluminum or steel framed structures designed to provide secure access to the base of AdjustRight® football goal posts. They are commonly used for maintenance, assembly, adjustments or removal of goal posts by field crews or maintenance teams.
When a football goal post is installed with an access frame kit, half covers are used to fit snuggly around the gooseneck post and cover the recessed area created by the access frame. When it’s time to remove the goal post, solid covers (sold separately) are placed inside. In addition to an open frame bottom, access frame kits include subsurface drainage outlets allowing them to be connected to a 1” drain line during construction. This outlet provides drainage, virtually eliminating any standing water that could collect inside the access frame area.
All access frame kits manufactured by Sportsfield Specialties are designed to incorporate the SG2S® soccer goal safety system, which can be purchased with GoalPak® combination goals or added in the field after installation has been completed.
DOCUMENTATION
GPAFIT - Standard access frame kit for synthetic infill turf
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFIT and GPAFITHD Football Goal Access Frame for Synthetic Turf Cut Sheet | 1.18 MB | 20-09-2023 | Download |
| GPAFIT Access Frame Kit for Synthetic Infill Turf 3-Part Spec | 59.50 KB | 20-09-2023 | Download |
| GPAFIT-CAD | 697.97 KB | 20-09-2023 | Download |
GPAFITHD - Heavy duty standard access frame kit for synthetic infill turf
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFIT and GPAFITHD Football Goal Access Frame for Synthetic Turf Cut Sheet | 1.18 MB | 20-09-2023 | Download |
| GPAFITHD Heavy Duty Access Frame Kit for Synthetic Infill Turf 3-Part Spec | 60.00 KB | 20-09-2023 | Download |
| GPAFITHD-CAD | 2.22 MB | 20-09-2023 | Download |
GPAFITC - Optional GPAFIT full size reinforced aluminum filler plug for synthetic infill turf
GPAFITCHD - Optional heavy duty GPAFIT full size reinforced aluminum filler plug for synthetic infill turf
GPAFNG - Standard access frame kit for natural grass
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFNG and GPAFNGHD Football Goal Access Frame for Natural Grass Cut Sheet | 1.63 MB | 20-09-2023 | Download |
| GPAFNG Access Frame Kit for Natural Grass 3-Part Spec | 58.50 KB | 20-09-2023 | Download |
| GPAFNG-CAD | 527.75 KB | 20-09-2023 | Download |
GPAFNGHD - Heavy duty standard access frame kit for natural grass
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFNG and GPAFNGHD Football Goal Access Frame for Natural Grass Cut Sheet | 1.63 MB | 20-09-2023 | Download |
| GPAFNGHD Heavy Duty Access Frame Kit for Natural Grass 3-Part Spec | 59.50 KB | 20-09-2023 | Download |
| GPAFNGHD-CAD | 3.41 MB | 20-09-2023 | Download |
GPAFNGC - Optional GPAFNGC full size reinforced aluminum filler plug for natural grass
GPAFNGCHD - Optional heavy duty GPAFNGC full size reinforced aluminum filler plug for natural grass
GPAFITR30 - 30" access frame kit for synthetic infill turf
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFITR30 and GPAFITR30HD Football Goal 30'' Access Frame for Synthetic Turf Cut Sheet | 809.31 KB | 20-09-2023 | Download |
| GPAFITR30 30 Inch Access Frame Kit for Synthetic Infill Turf 3-Part Spec | 60.00 KB | 20-09-2023 | Download |
GPAFITR30HD - Heavy duty 30" access frame kit for synthetic infill turf
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFITR30HD Heavy Duty 30 Inch Access Frame Kit for Synthetic Infill Turf 3-Part Spec | 60.50 KB | 20-09-2023 | Download |
| GPAFITR30HD-CAD | 2.18 MB | 20-09-2023 | Download |
| GPAFITR30 and GPAFITR30HD Football Goal 30'' Access Frame for Synthetic Turf Cut Sheet | 809.31 KB | 20-09-2023 | Download |
GPAFITRC30 - Optional GPAFITR30 full size reinforced aluminum filler plug for synthetic infill turf
GPAFITRC30HD - Optional heavy duty GPAFITR30 full size reinforced aluminum filler plug for synthetic infill turf
GPAFNGR30 - 30" access frame kit for natural grass
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFNGR30 and GPAFNGR30HD Football Goal 30'' Access Frame for Natural Grass Cut Sheet | 1.35 MB | 20-09-2023 | Download |
| GPAFNGR30 30 Inch Access Frame Kit for Natural Grass 3-Part Spec | 59.50 KB | 20-09-2023 | Download |
GPAFNGR30HD - Heavy duty 30" access frame kit for natural grass
| Title | Size | Date added | Download |
|---|---|---|---|
| GPAFNGR30HD Heavy Duty 30 Inch Access Frame Kit for Natural Grass 3-Part Spec | 60.00 KB | 20-09-2023 | Download |
| GPAFNGR30HD-CAD | 3.96 MB | 20-09-2023 | Download |
| GPAFNGR30 and GPAFNGR30HD Football Goal 30'' Access Frame for Natural Grass Cut Sheet | 1.35 MB | 20-09-2023 | Download |
GPAFNGRC30 - Optional GPAFNGRC30 full size reinforced aluminum filler plug for natural grass
GPAFNGRC30HD - Optional heavy duty GPAFNGRC30 full size reinforced aluminum filler plug for natural grass

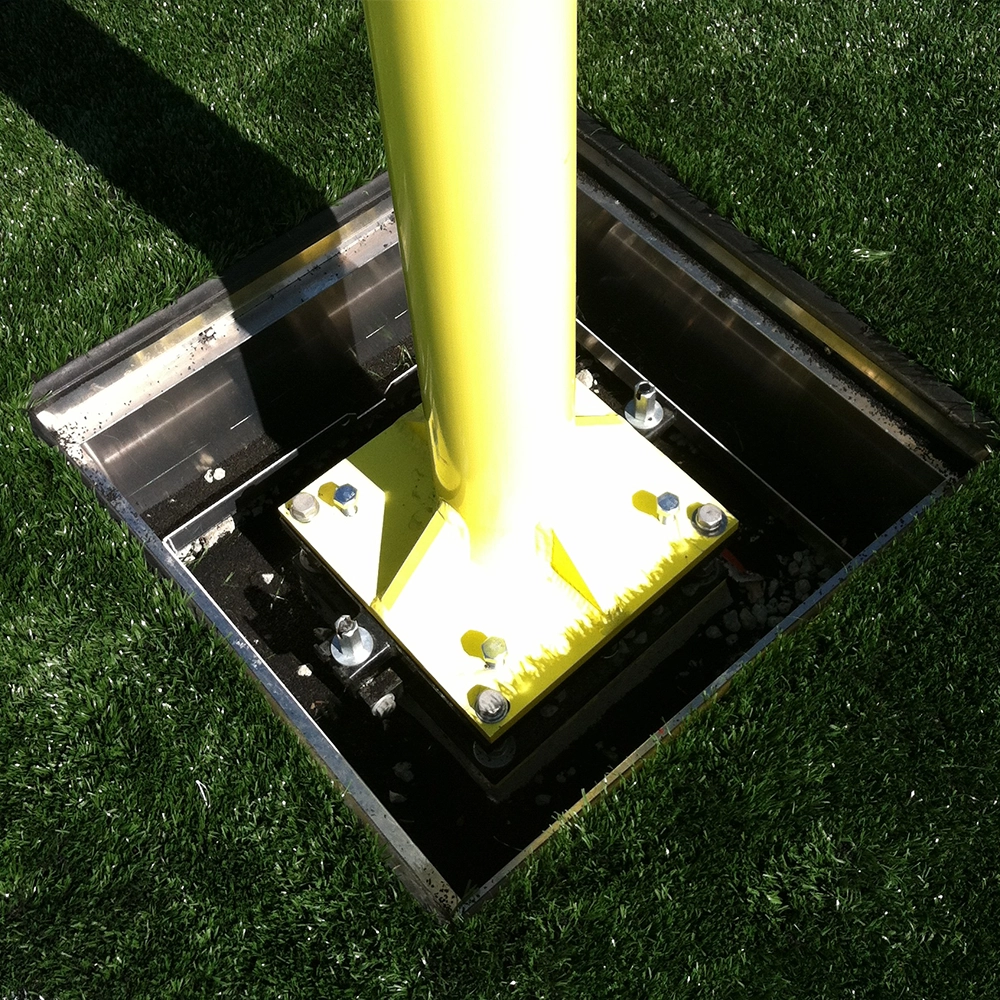

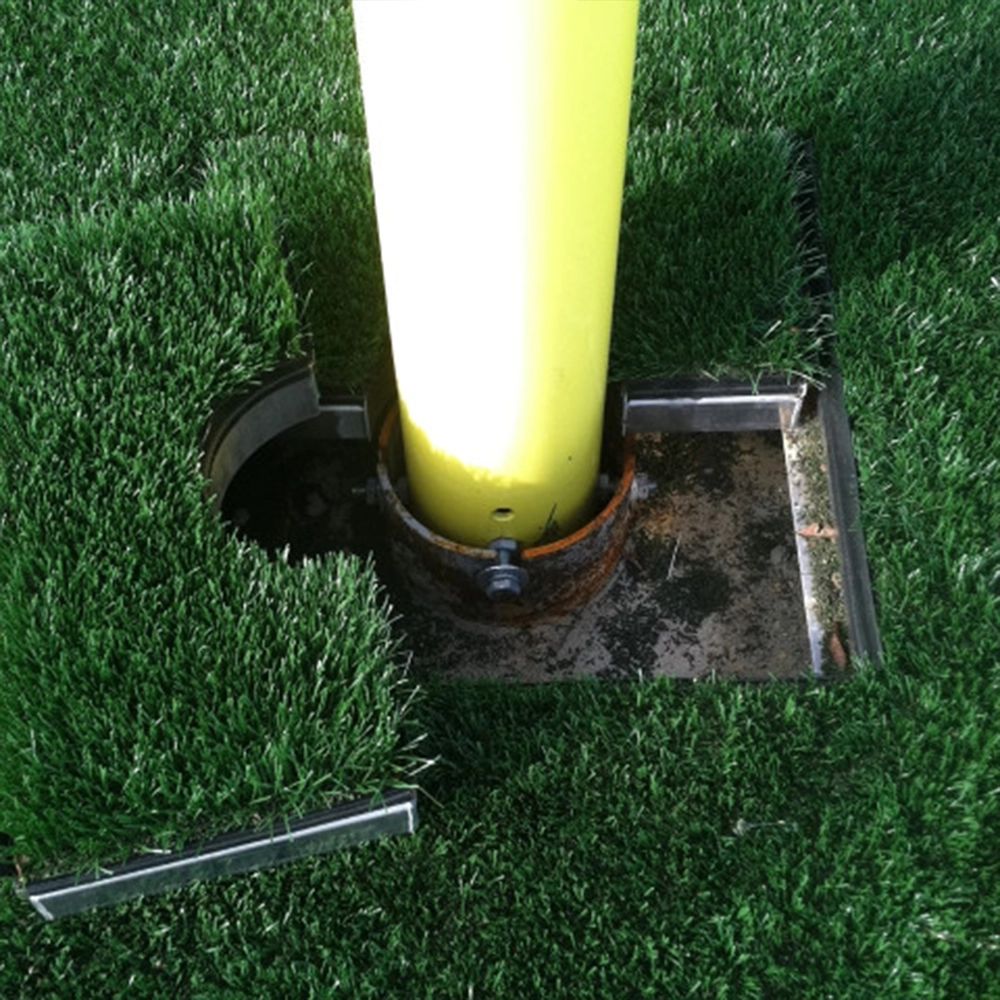

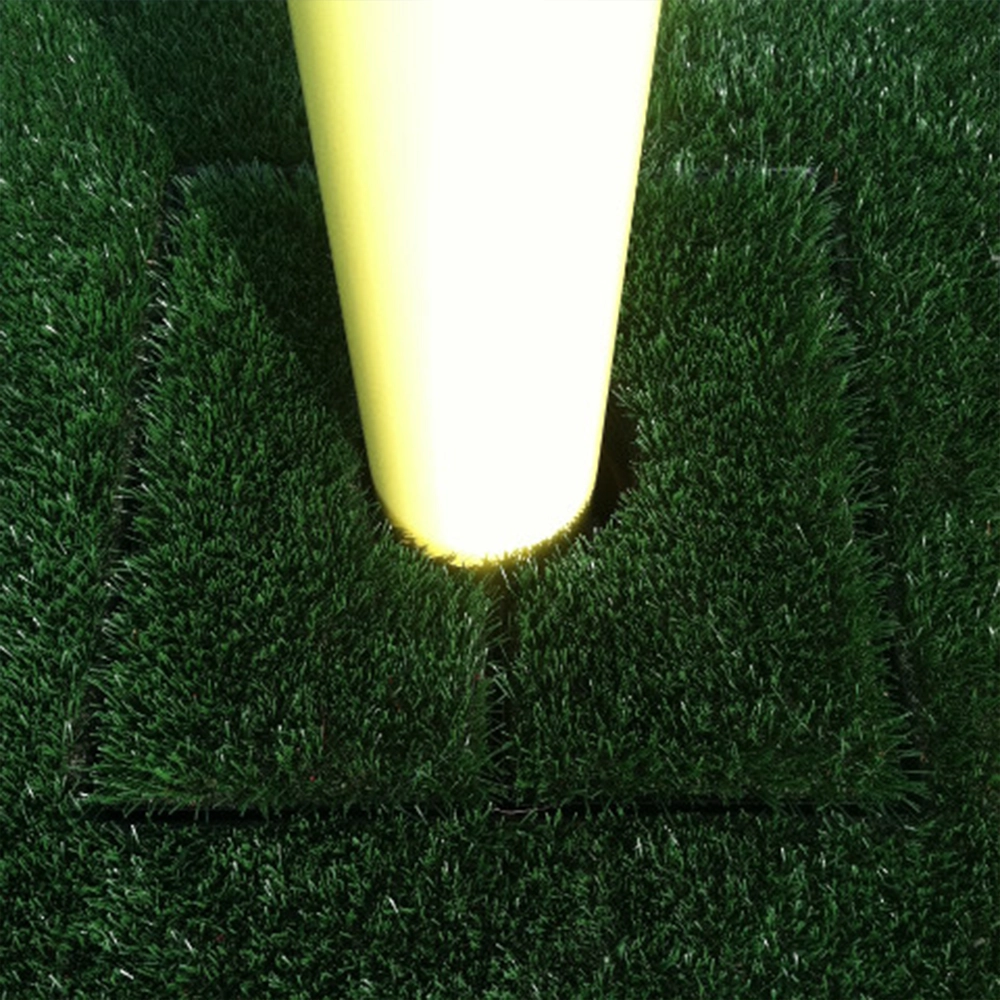

PHOTO GALLERY
